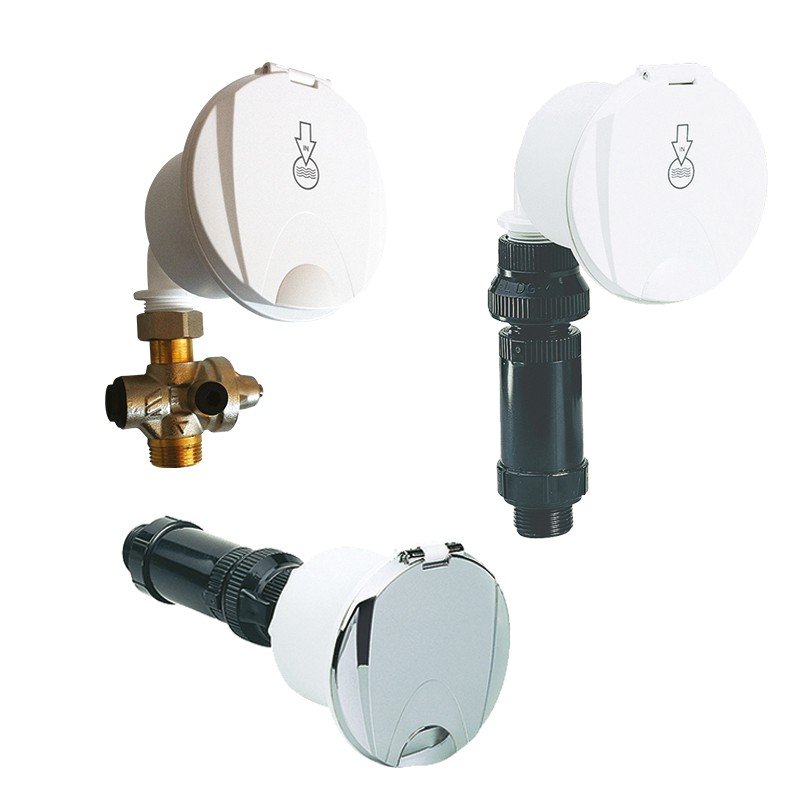

Case with Fresh Water Inlet, with Lid

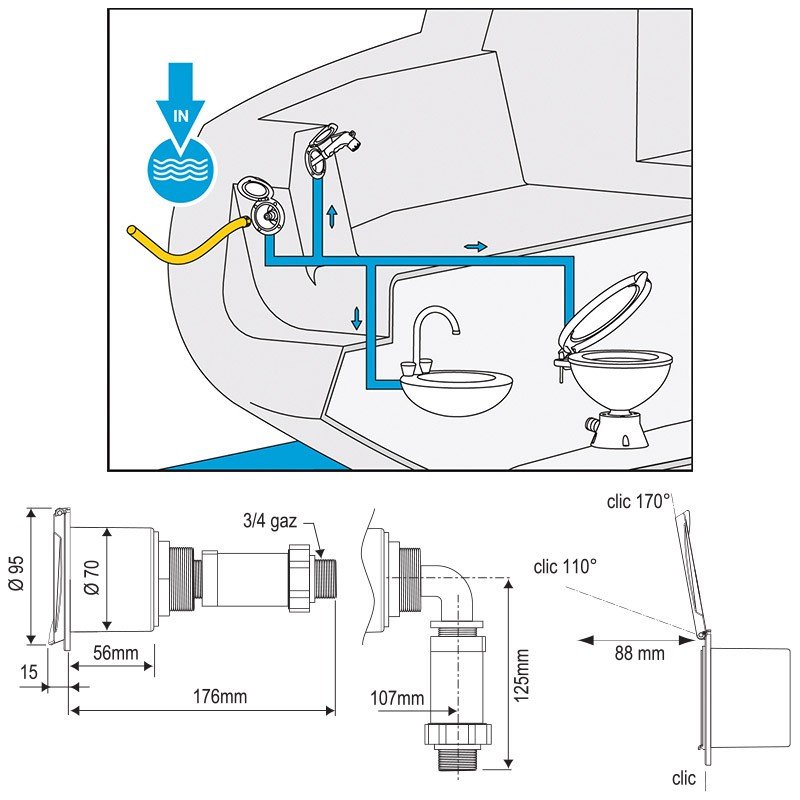

This is the perfect connection between the boat’s water network and the shore water supply. It is then easy to cook or have a shower when at the dock, without using water from the tanks (Not suitable for filling the water tanks).

The complete set (47812-5) includes:

- An ASA housing with plastic splash-proof cover

- A pressure regulator which accepts up to 5 bar working pressure, compatible with most appliances and equipment on board

- A non-return valve

- A male quick-coupling fitting for garden hose connection

- Male 3/4” threaded connector to the boat’s water system

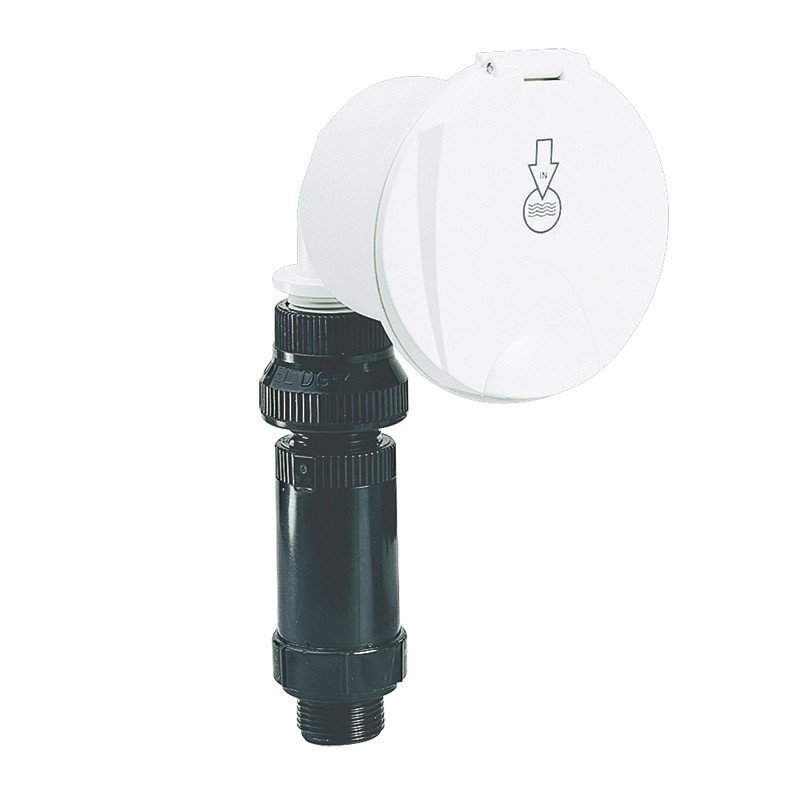

The complete set (58131) includes:

- An ASA housing with plastic splash-proof cover

- A male quick-coupling fitting for garden hose connection

- Male 3/4” threaded connector to the boat’s water system

- Metal pressure regulator with cloth diaphragm valve, adjustable from 1,5 to 5 bar

- Maintenance free, robust construction with silent operation (no vibration)

- Max. inlet pressure: 15 bar

- Max. temperature: 70°C

- Corrosion preventing DZR brass body

- Factory preset (4 bar at zero discharge for 3 bar working)

- Diaphragm and seals EPDM & NBR

- Slotted adjusting screw that can be turned with a flathead screwdriver

- Female 1/4” pressure gauge outlet
