GALAXY Pilot P4 — Compact Professional Aluminium Hull RIB
(Gaelix Marine Service — Exclusive Representative of GALAXY Boats in Greece & Cyprus)
Overview
The GALAXY Pilot P4 is a compact professional aluminium-hull RIB created for situations where mobility, fast deployment and operational reliability are critical.

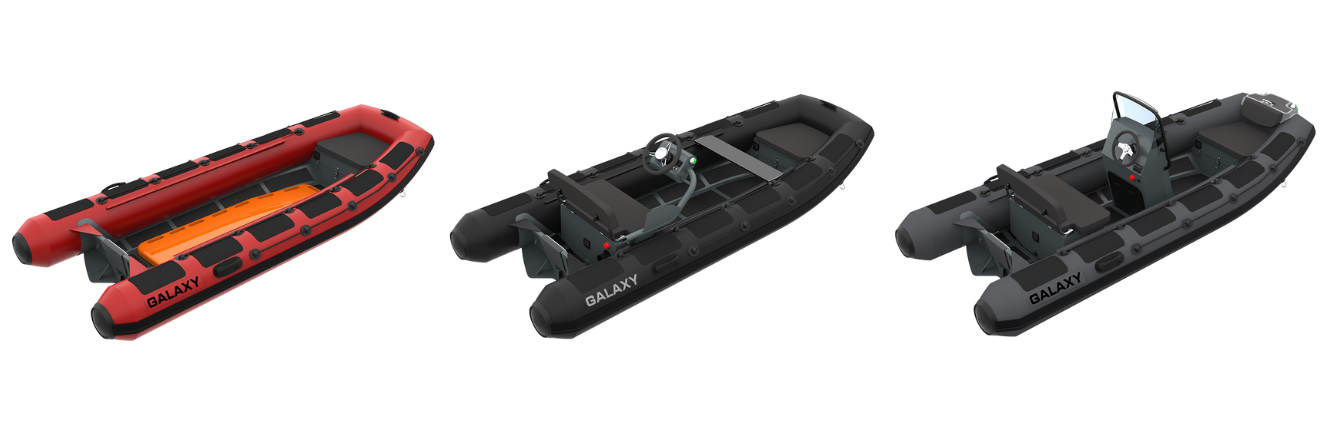

Designed for patrol service, law enforcement and search & rescue missions, the Pilot P4 is also highly effective for commercial and support tasks on inland waters and in protected coastal areas.
With its lightweight structure, stable handling and mission-ready deck layout, the Pilot P4 is an excellent choice for teams that require a dependable work platform that can be transported and launched quickly.
Key Advantages
-
welded aluminium hull — marine-grade construction
-
compact size for fast deployment and easy transport
-
professional anti-slip deck for safer work onboard
-
stable and predictable handling on inland waters
-
strong payload capacity for equipment and crew
-
configurable layouts for different mission profiles
-
compatible with steering console and seat upgrades
-
available with PVC or Hypalon tube configurations
-
wide selection of optional accessories for professional use
Professional Applications

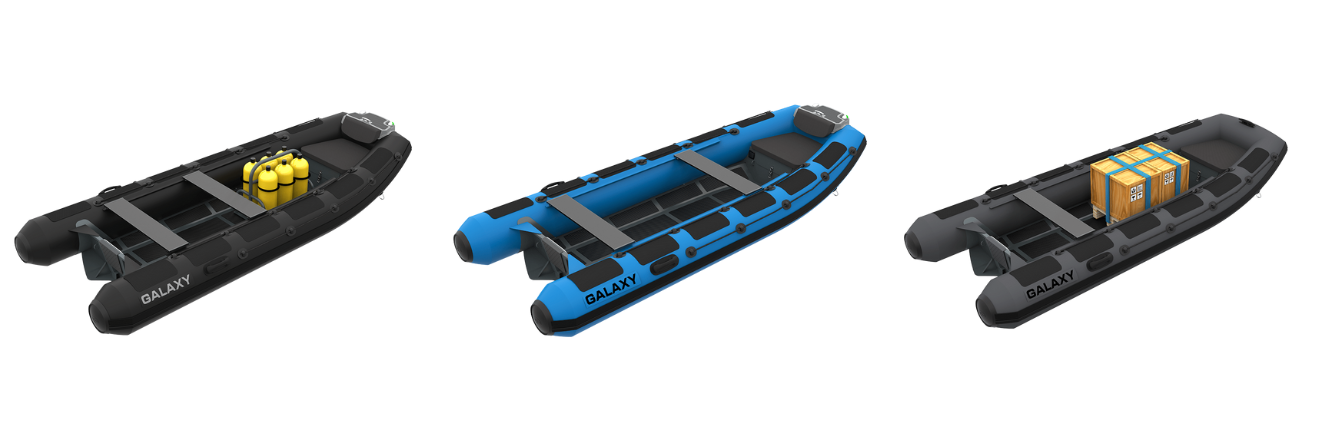

The Pilot P4 can be configured for:
-
Training and professional schools
-
Commercial support and workboat missions
-
Diving support and equipment transport
Recommended Outboard
Recommended engine power: 20 HP / 14.7 kW
Maximum power: 30 HP / 22.1 kW
Maximum engine weight: 70 kg / 154 lbs
Engine shaft: 15″ (30″)
Gaelix Marine Service supplies turnkey packages:
Specifications
| Parameter |
Value |
| Total length |
390 cm / 12′ 10″ |
| Cockpit length |
300 cm / 9′ 10″ |
| Overall width |
170 cm / 5′ 7″ |
| Cockpit width |
82 cm / 2′ 8″ |
| Tube diameter max |
44 cm / 17.3″ |
| Weight of the vessel |
98 kg / 216 lbs |
| Cargo carrying capacity |
650 kg / 1430 lbs |
| Passenger capacity |
6 |
| Number of compartments in tubes |
3 |
| Recommended engine power |
20 HP / 14.7 kW |
| Maximum engine power |
30 HP / 22.1 kW |
| Maximum motor weight |
70 kg / 154 lbs |
| Motor leg length |
15″ (30″) |
| Fuel tank capacity |
— |
| Roughness on the trine / middle |
16° / 22° |
| Tube material |
PVC or Hypalon |
| Hull material |
Aluminum hull RIB |
| Aluminum sheet thickness (side / bottom) |
3 |
| Boat design category |
C |
Construction & Technologies
Aluminium Structure
The Pilot P4 is built around a durable aluminium hull designed for professional use, delivering reliable performance and structural rigidity for daily missions.
Professional Anti-Slip Deck
The anti-skid deck surface supports safe movement onboard and improves crew confidence during operations, even in wet conditions.
Compact & Mission-Ready Layout
Despite its compact length, the Pilot P4 offers practical cockpit space for equipment, seating upgrades and functional professional configurations.
Standard Equipment
Optional Equipment (Price Excluding Taxes)
| Upgrade |
Price (€) |
| Upgrade tube to Etna Red color (P4 Hypalon only) |
— (558,76*) |
| AQUAHELM double seat S-08 with steering arm |
1 625,23 |
| Steering console C-09, aluminium |
1 687,51 |
| Aluminium seat №7 93×20 cm with installation of PVC/HYP rail |
96,56 |
| Jokey seat S22H |
1 291,22 |
| Jokey seat S22 |
1 204,71 |
| Steering system for engines till 50HP with cable |
380,86 |
| Steering wheel, gray |
204,27 |
| Steering wheel, black |
209,95 |
| Electric power package №18 for P4 |
1 056,06 |
| Electric power package №13 for P4* (*with console C-09), P4.5, P5 |
1 204,02 |
| Bow step plate №2P for P4, fiberglass (w/o soft back) |
458,46 |
| Two side step panels №2P for P4, fiberglass |
521,57 |
| Bow locker soft cushion №3P for P4 |
104,14 |
| Soft back cushion for bow step plate №2P |
67,00 |
| Individual overall cover for P4 |
549,61 |
| Custom lettering on both sides of inflatable tube |
607,33 |
* Prices for the P4 Hypalon version.
Warranty & Certification
All GALAXY boats are built according to GELEX GLOBAL GROUP standards and comply with European CE regulations.
Gaelix Marine Service provides:
Contact
Contact us for availability, color options and lead time.
Worldwide shipping available.
