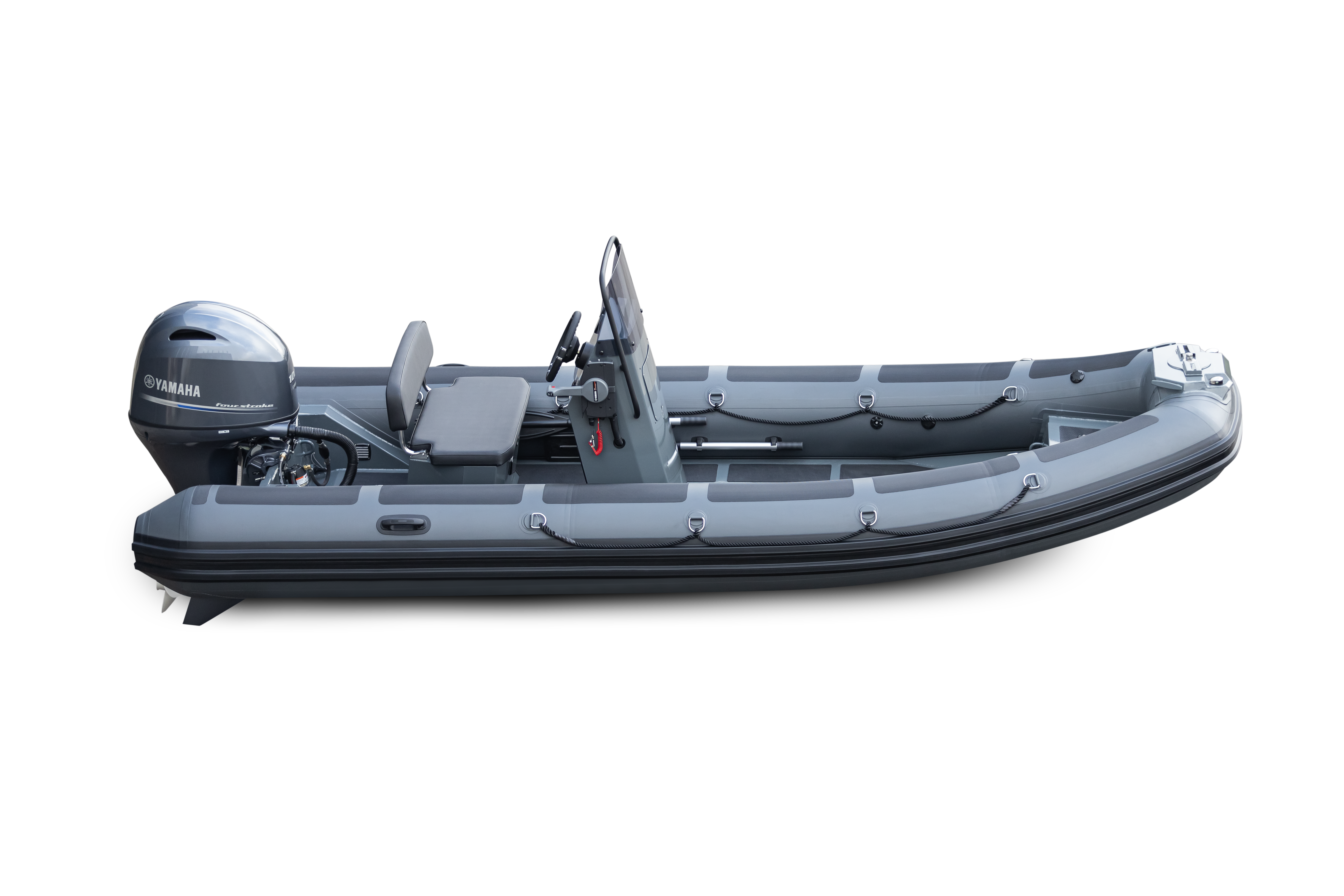

GALAXY Pilot P5 — Professional Aluminium Hull RIB
(Gaelix Marine Service — Exclusive Representative of GALAXY Boats in Greece & Cyprus)
Overview
The GALAXY Pilot P5 is a professional aluminium RIB designed for demanding operations where reliability, mobility, and safety are essential.
Like the Pilot P4.5, the P5 is built for patrol missions, law enforcement, search and rescue operations, and commercial applications. With its balanced hull geometry, reinforced structure and practical layout, it performs confidently in both inland waters and coastal seawater areas.
A spacious cockpit, professional anti-slip deck, integrated fuel system and a wide range of configurable accessories make the Pilot P5 a dependable platform for everyday heavy-duty use.
Built using advanced corrosion-protection technologies and marine-grade powder coating, the Pilot P5 offers durability far beyond typical leisure RIBs.
Key Advantages
-
welded aluminium hull — EN AW-5083 alloy
-
TIG / MIG industrial welding technology
-
ENVIROX titanium passivation (chromate-free corrosion protection)
-
marine-grade powder-coated finish
-
open cockpit layout for crew and equipment
-
stable handling and predictable performance
-
professional rubberized anti-slip deck
-
integrated fuel system for operational range
-
available with PVC / Hypalon tubes
-
wide range of professional seating, consoles and work options

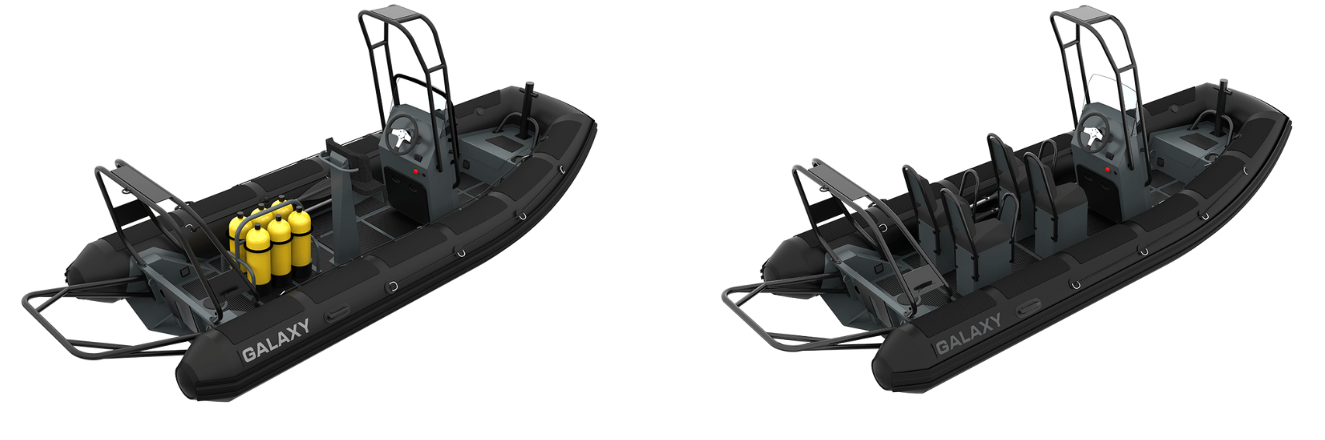

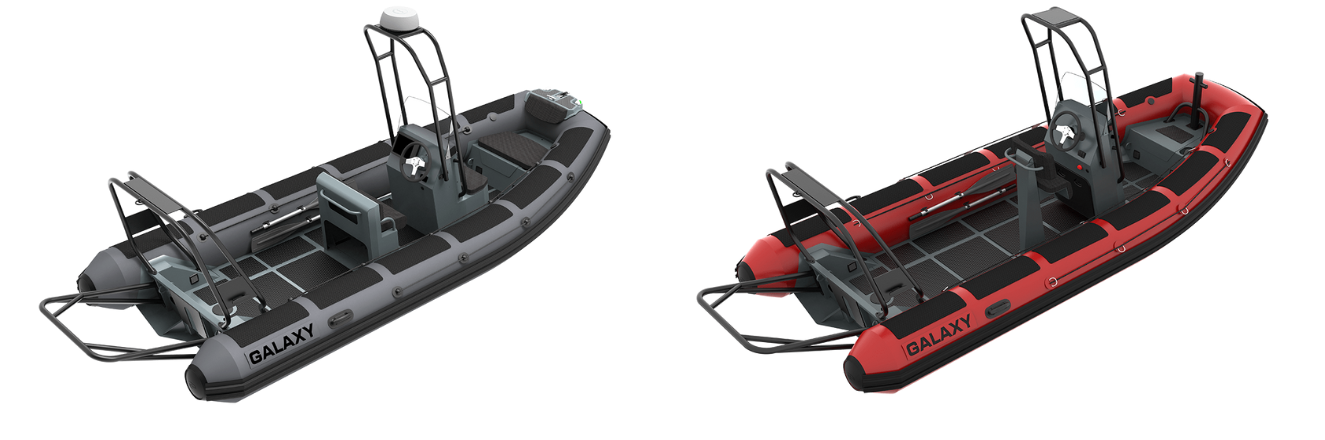

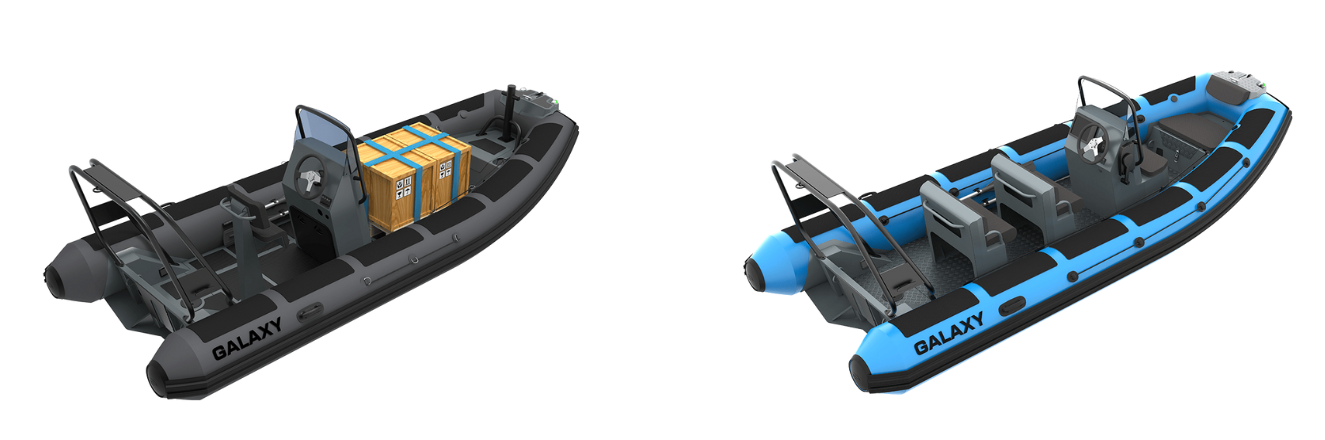

Professional Applications
The Pilot P5 can be configured for:
Recommended Outboard
Recommended engine power: 70 HP / 51.5 kW
Maximum power: 100 HP / 73.5 kW
Maximum engine weight: 180 kg / 396 lbs
Engine shaft: 20″
Gaelix Marine Service supplies turnkey packages:
Specifications
| Parameter |
Value |
| Length |
500 cm / 16′5″ |
| Cockpit Length |
410 cm / 13′5″ |
| Width |
215 cm / 7′1″ |
| Cockpit Width |
111 cm / 3′8″ |
| Tube Diameter (max) |
52 cm / 20.5″ |
| Weight |
320 kg / 704 lbs |
| Cargo Carrying Capacity |
1020 kg / 2244 lbs |
| Passenger Capacity |
8 |
| Air Chambers |
5 |
| Fuel Tank |
83 L |
| Recommended Engine Power |
70 HP / 51.5 kW |
| Maximum Engine Power |
100 HP / 73.5 kW |
| Maximum Motor Weight |
180 kg / 396 lbs |
| Motor Leg Length |
20″ |
| Deadrise (chine / middle) |
23° / 28° |
| Tube Material |
Hypalon / PVC |
| Hull Material |
Aluminium hull RIB |
| Aluminium Thickness (side / bottom) |
5 |
| CE Category |
C |
Construction & Technologies
Aluminium Structure
The hull is manufactured from marine-grade EN AW-5083 aluminium and welded using TIG/MIG technology for maximum strength and rigidity.
ENVIROX Protection
Titanium-based, chromate-free passivation improves corrosion resistance and increases long-term hull lifespan in saltwater conditions.
Powder-Coated Finish
Marine polyester powder coating is:
Professional Anti-Slip Deck
Heavy-duty anti-slip coating provides safe grip for crew movement even when wet — ideal for patrol and work missions.
Standard Equipment
-
coated aluminium hull
-
professional anti-slip deck
-
inflatable tube with rubrail, protection pads, lifeline and handles
-
built-in fuel system — 83 L fuel tank with sender
-
foot pump
-
paddles
-
repair / service kit
Optional Equipment (Price Excluding Taxes)
| Upgrade |
Price (€) |
| Upgrade tube to Etna Red color (P5 Hypalon only) |
— (954,21*) |
| Steering console C-09, aluminium |
1 688,00 |
| Steering console C-04P with front seat, aluminium |
1 736,76 |
| Jokey seat S22 |
1 202,68 |
| Jokey seat S22H |
1 290,25 |
| Bolster seat S-12, deck mount, with back rest |
1 097,65 |
| Driver's folding seat S-03P |
1 141,00 |
| Driver's folding seat S-04P |
1 188,56 |
| Steering system for engines more 50HP with cable |
504,04 |
| Hydraulic steering system (GoTech, up to 115 HP) |
1 889,01 |
| Steering wheel, gray |
204,29 |
| Steering wheel, black |
208,93 |
| Electric power package No13 for P4* (*with console C-09), P4.5, P5 |
1 203,02 |
| Fuel gauge, black/black |
94,30 |
| Bow step plate No3P for P4.5, P5, fiberglass (w/o soft back) |
616,95 |
| Bow step plate No5 for P4.5, P5, aluminium (w/o soft back) |
511,43 |
| Towing arch No2 for A450L, A500L, P4.5, P5 |
990,60 |
| Single engine guard frame No2 for P4.5, P5 |
796,56 |
| Steering console tower No1 with mounting plate for C-09, C-04P |
886,51 |
| Bow towing bollard No8 for P4.5, P5 |
400,44 |
| Two side step panels №3P for P4.5, P5, fiberglass |
720,79 |
| T-top №1P for P5 |
2 290,47 |
| Diving bottles deck rack №4 for 4 bottles, for P4.5–P8, T7, T8 |
650,71 |
| Diving bottles deck rack №1 for 6 bottles, for P4.5–P8, T7, T8 |
720,79 |
| Bow locker soft cushion №4P for P4.5, P5 |
125,90 |
| Soft back cushion for bow step plate №3P |
77,26 |
| Soft back cushion for bow step plate №5 |
77,26 |
| Individual overall cover for P5 |
1 091,20 |
| Custom lettering on T-top |
303,67 |
| Custom lettering on both sides of inflatable tube |
607,35 |
* Prices for P5 Hypalon version may differ and are calculated on request.
Warranty & Certification
All GALAXY boats are built according to GELEX GLOBAL GROUP standards and comply with European CE regulations.
Gaelix Marine Service provides:
-
professional configuration support
-
engine and system installation
-
delivery and commissioning
-
after-sales technical service
Contact
Contact us for availability, tube material options (PVC / Hypalon), lead time and professional configuration support.
If you have any questions — send us a request through our contact form and we will prepare the best solution for your project.
