GOTECH™ Inboard set

0.00€

Description

Description

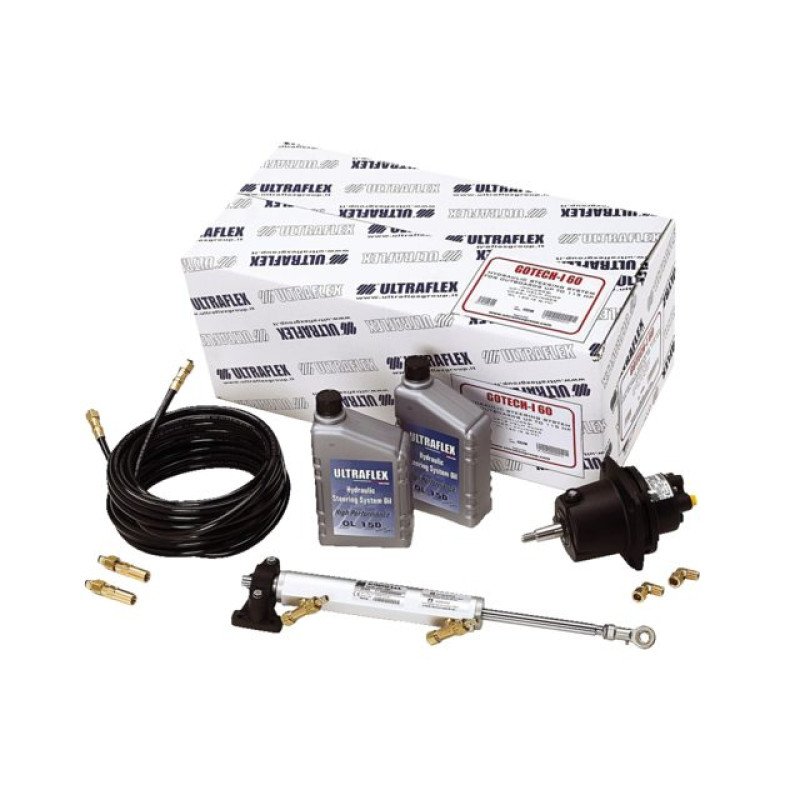

GOTECH™ hydraulic control system to 115 HP consists of:
• UP18 Intermediate mount helm pump
• UC69-I Inboard cylinder
• OL150 2l hydraulic oil
• Kit OB-GT / M hose kit diameter Ø 1/4", 2 x 6m (19.7') long
• Number of wheelturns 3,8
The steering pump UP18 is equipped with a shut-off valve, preventing setbacks from the motor to the steering wheel. In addition, a built-in bypass valve prevents damage from overpressure. The steering pump UP18 can be used with the cylinder UC69-I.
Technical information UP18
• Capacity per stroke 18cc
• 5 Plumper
• Maximum wheel diameter Ø 508mm
• 55bar/800PSI
Technical information UP69-I
• Same number of strokes from middle to the starboard and port (balanced)
• Volume 69cc
• Torque 32kgm
• Output force 168kg
• Inner diameter Ø 25mm
• Stroke 150mm
• Hose connection 3/8"
A: 150mm - 5,9"
B: 129mm - 5,11"
C: 105mm - 4,13"
D: 417mm - 16,42"
E: 31,3mm - 1,23"
F: 40mm - 1,57"
G: 73mm - 2,87"
Rod Ø: 14mm - 0,6"
